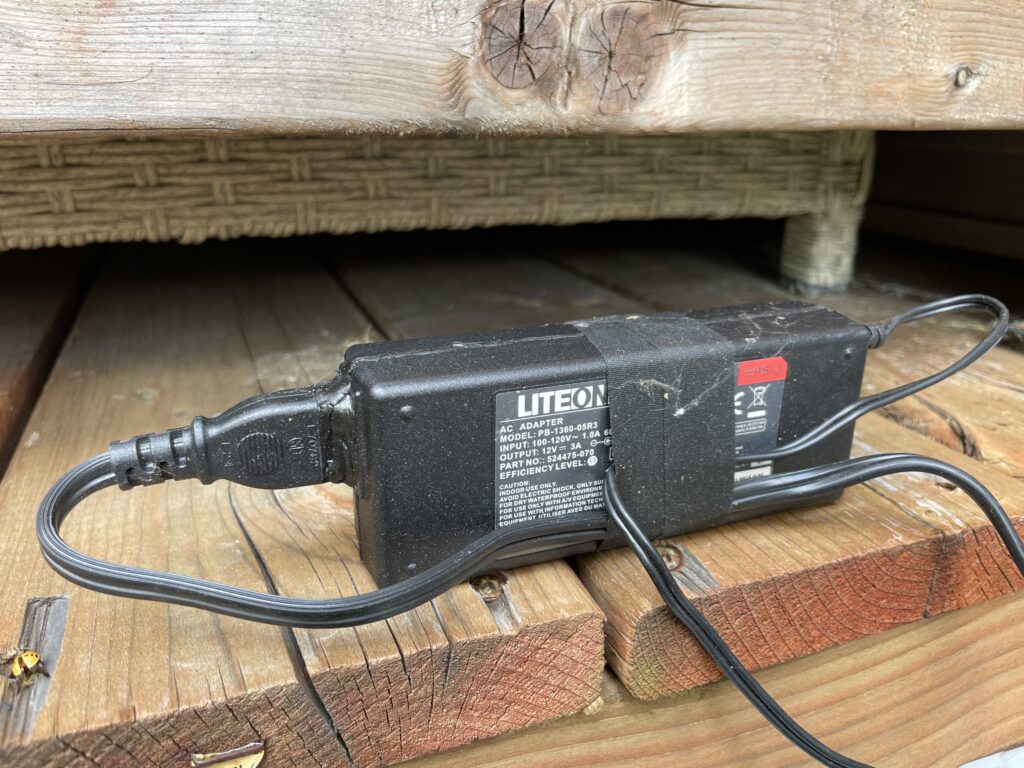

The advantage of working for a powersport company is you can be lucky to get good deals on all sort of stuff. On our yearly employee sales, I got myself a sound system of a personal water craft (aka Sea-Doo). It’s a 12V bluetooth powerful speaker system that is waterproof. I then design sheet metal brackets to hold the amplifier.
It sounds great! Very powerful. This was design to listen to music while riding a 70MPH with 300HP !

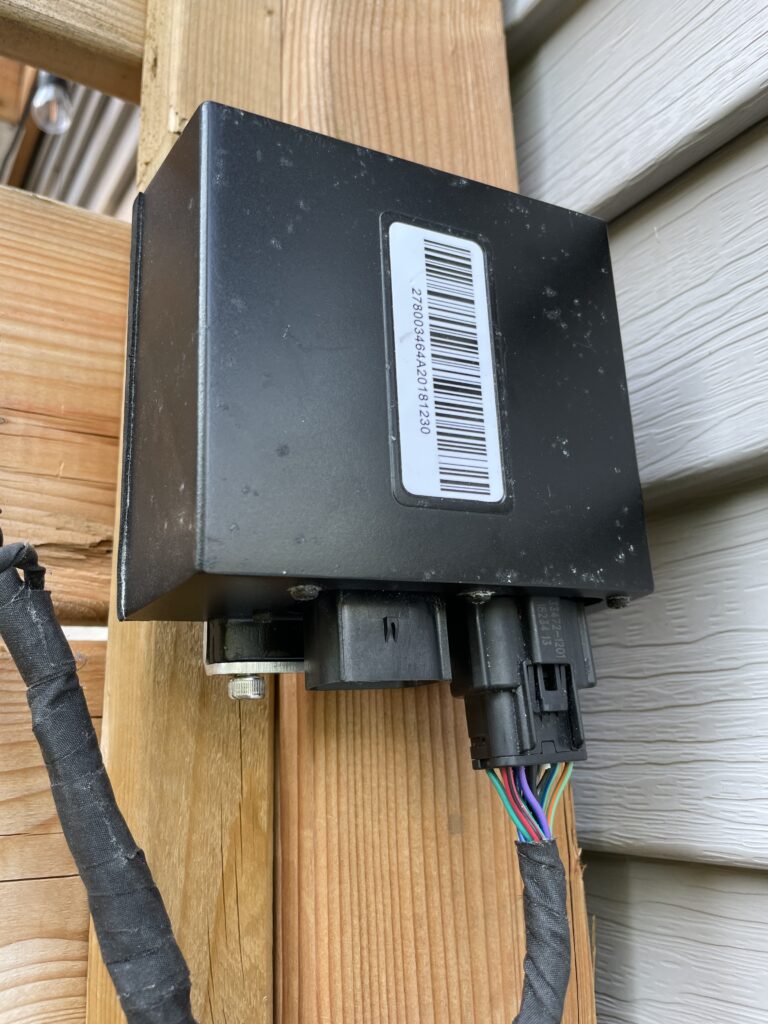

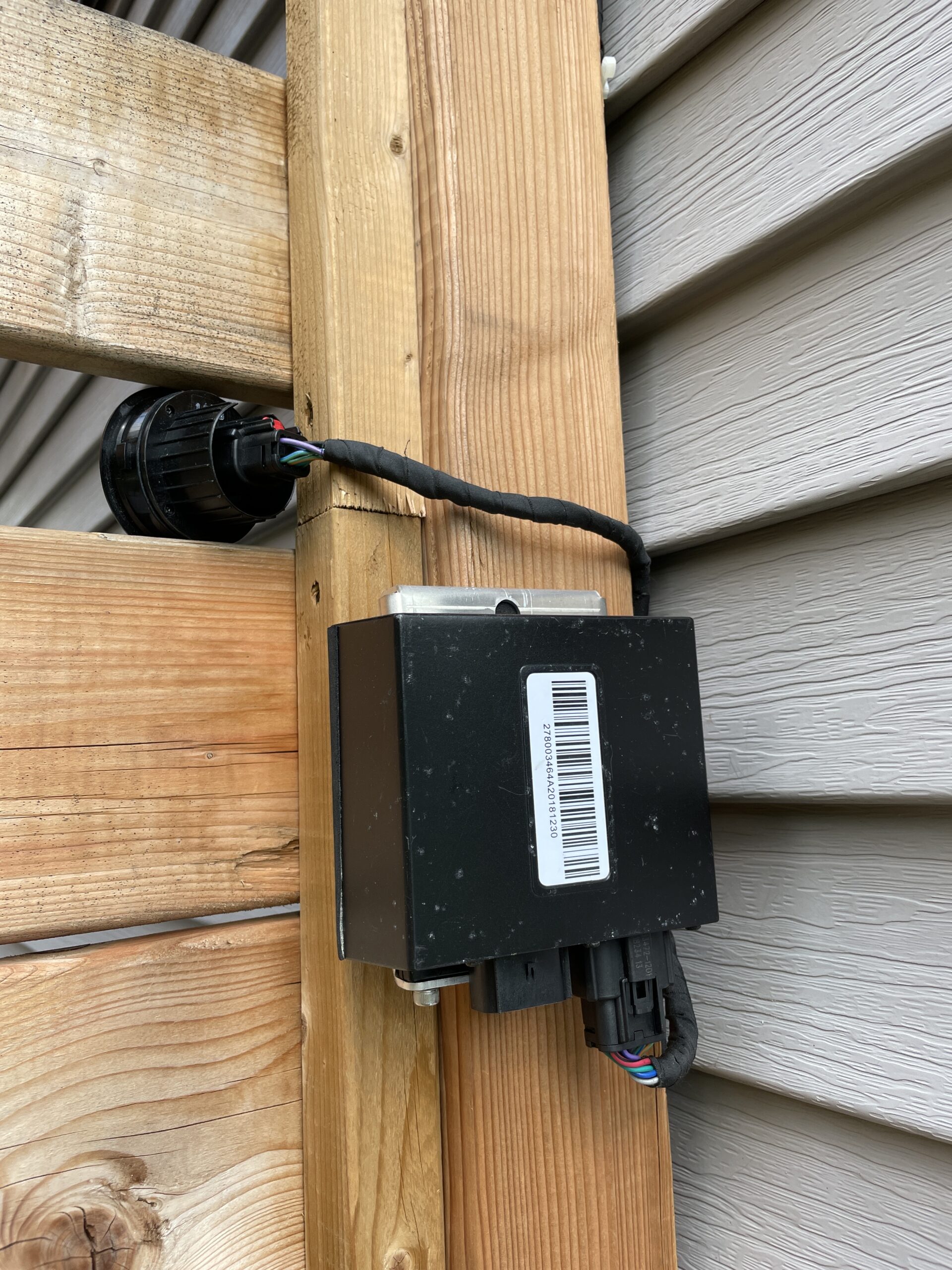

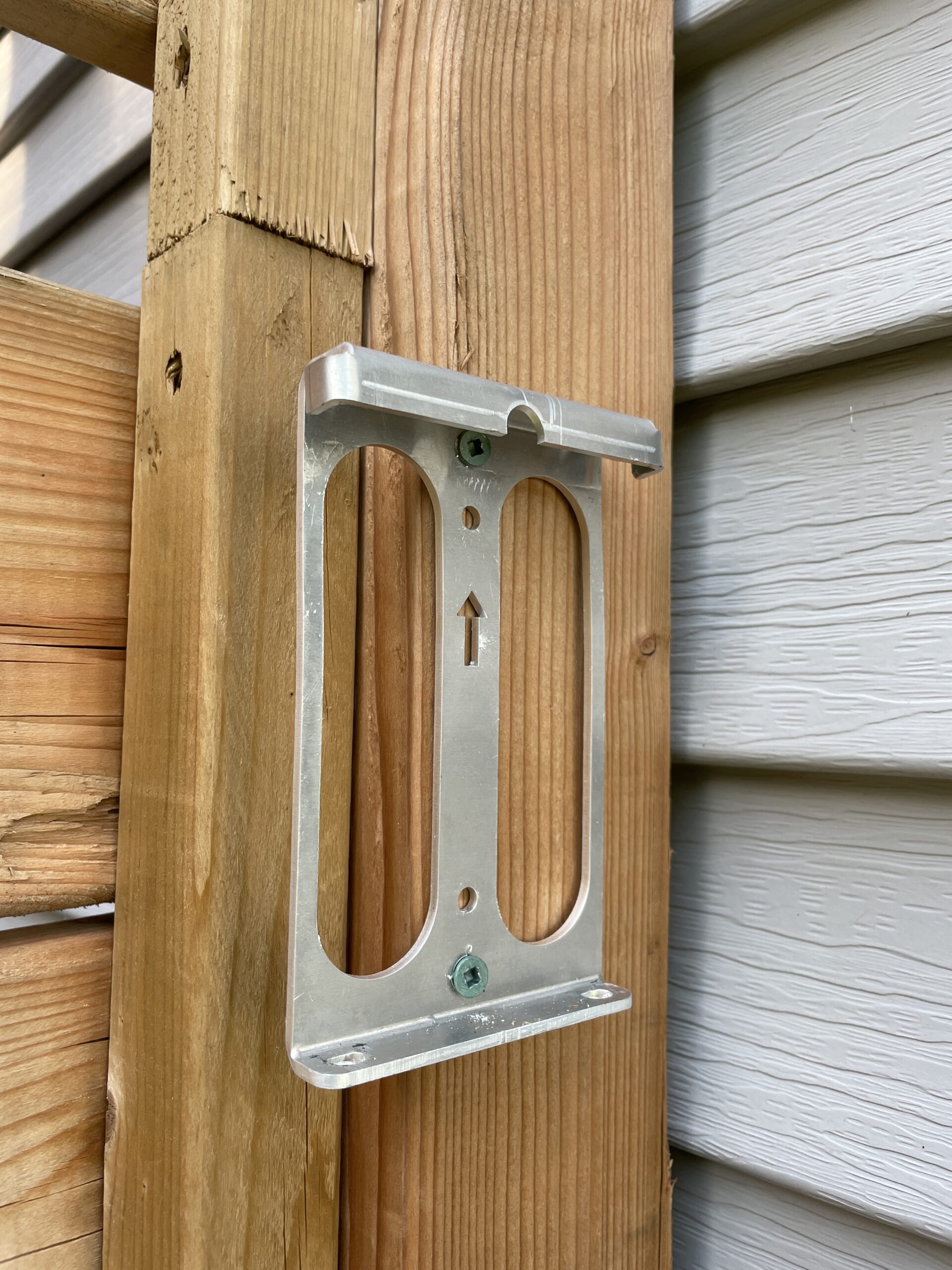

The amplifier needs to be clip so I design this sheet metal bracket to hold it. Have you notice the arrow to know which side is up?

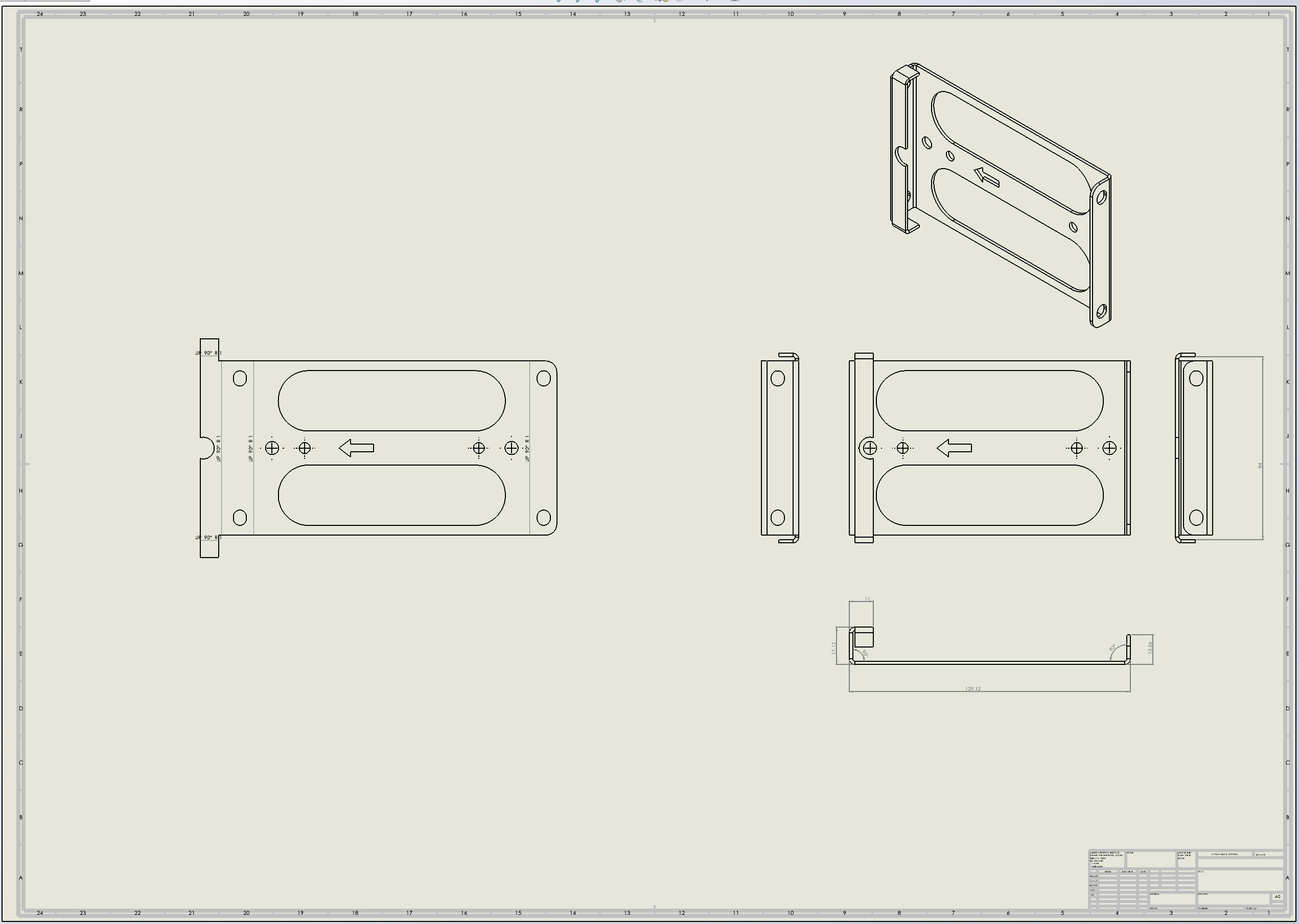

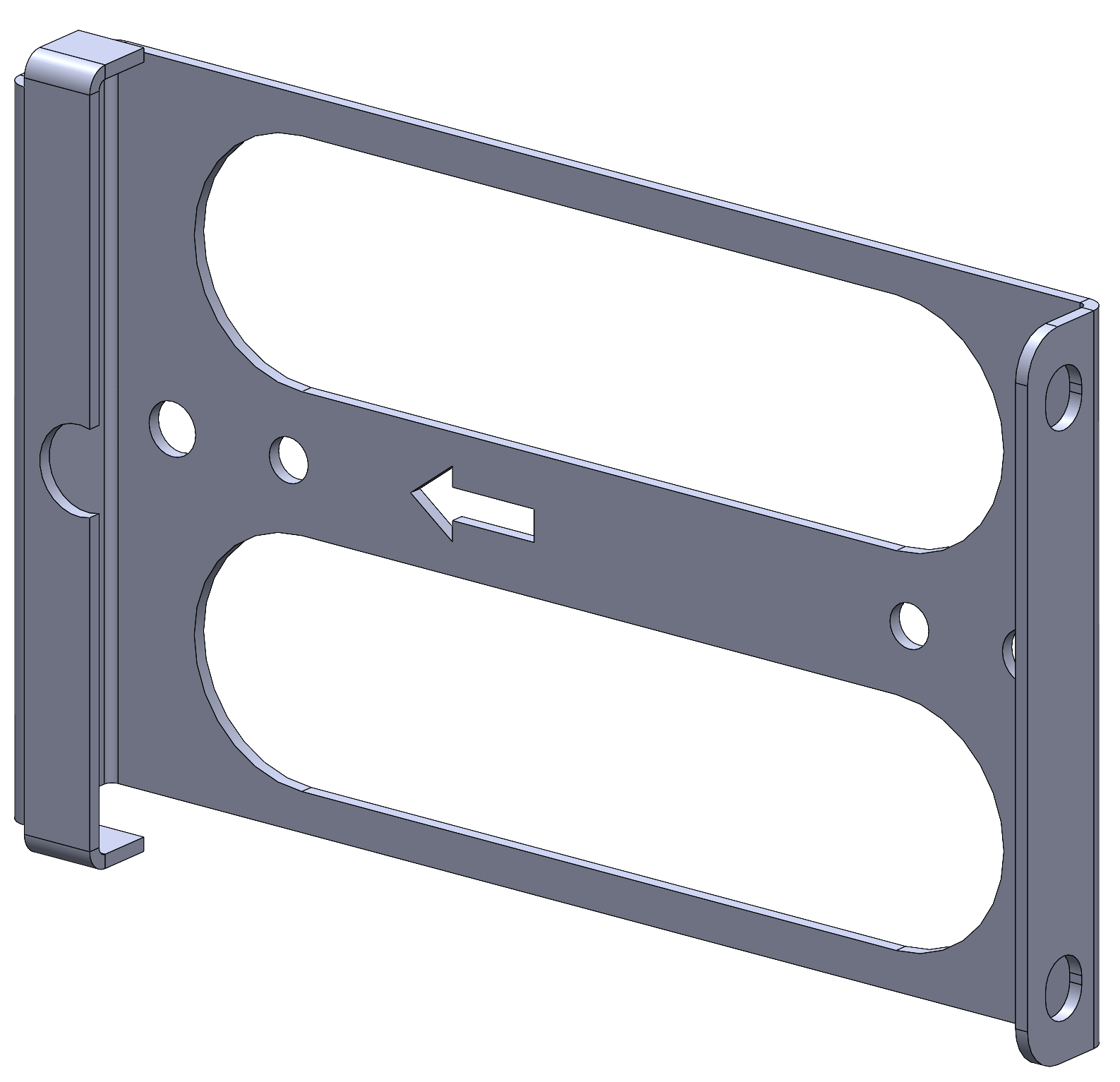

Below you will see the Solidworks parts and it’s 2D drawing that you need to send to get the part cut and bend correctly.

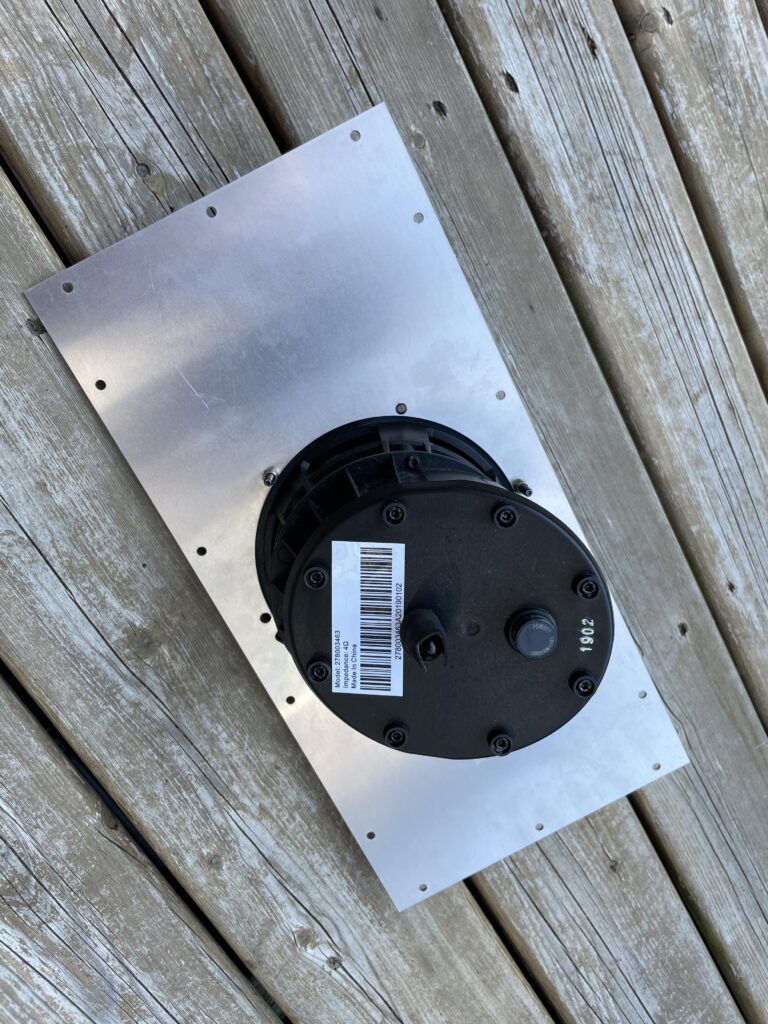

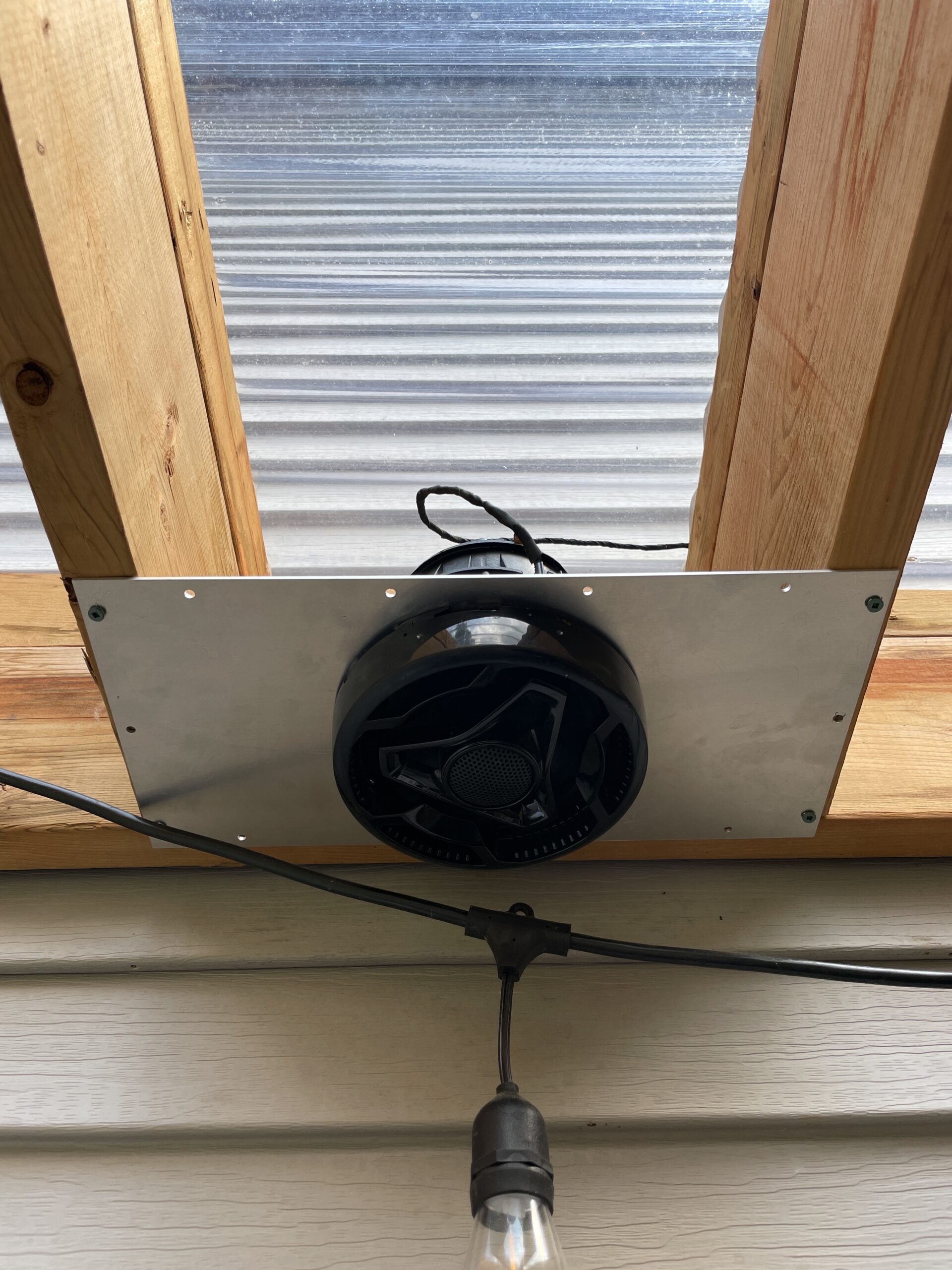

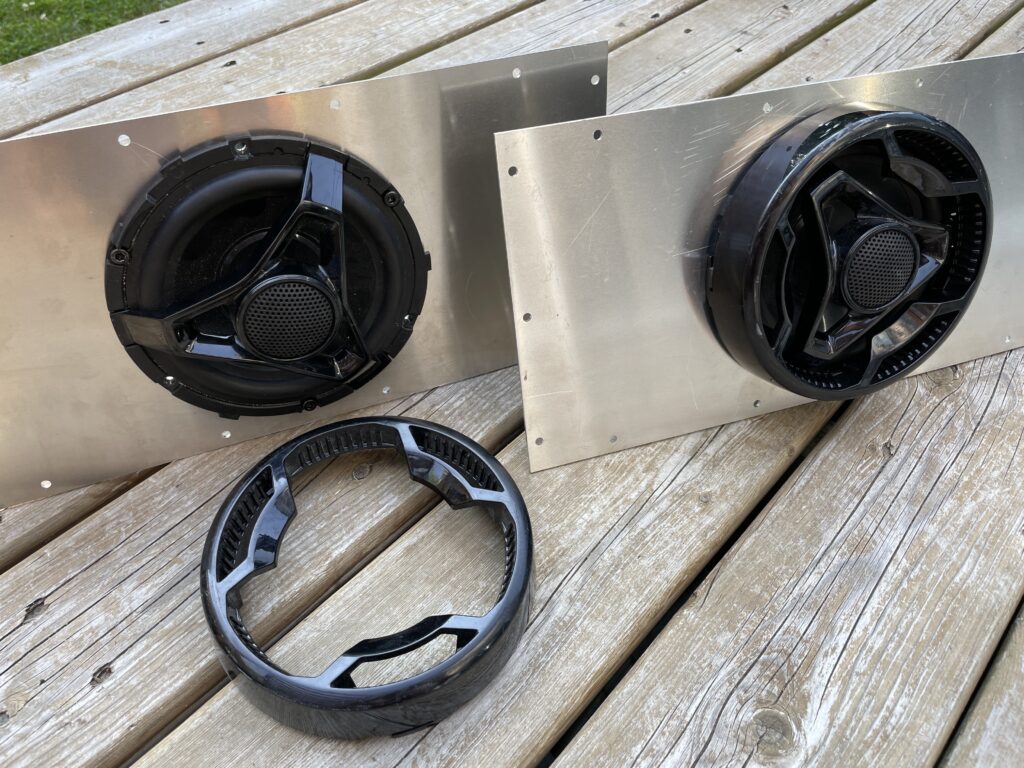

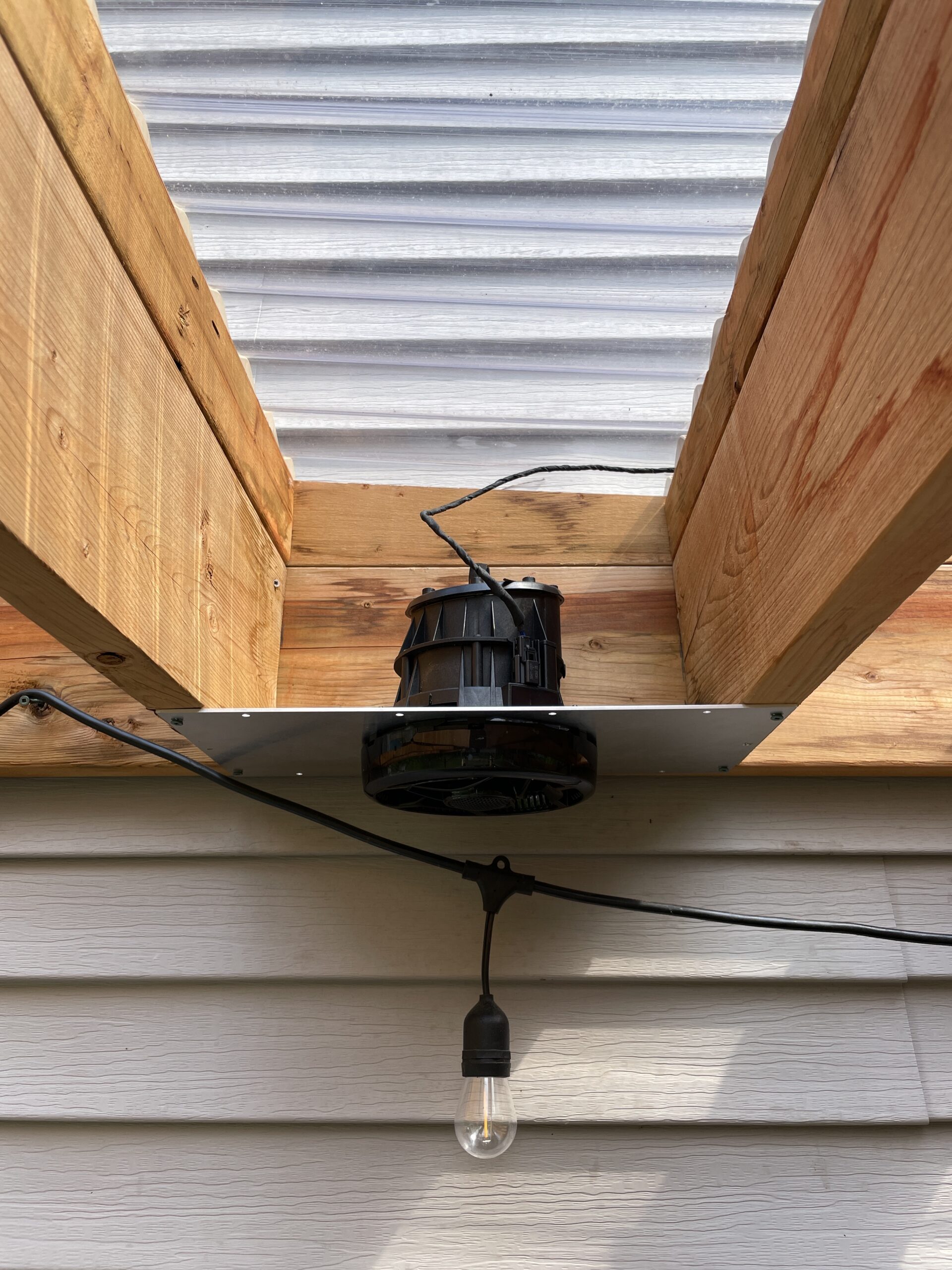

The speaker are simply screwed to flat sheet metal. The decorative plastic is 1/4 turn attach to speaker.

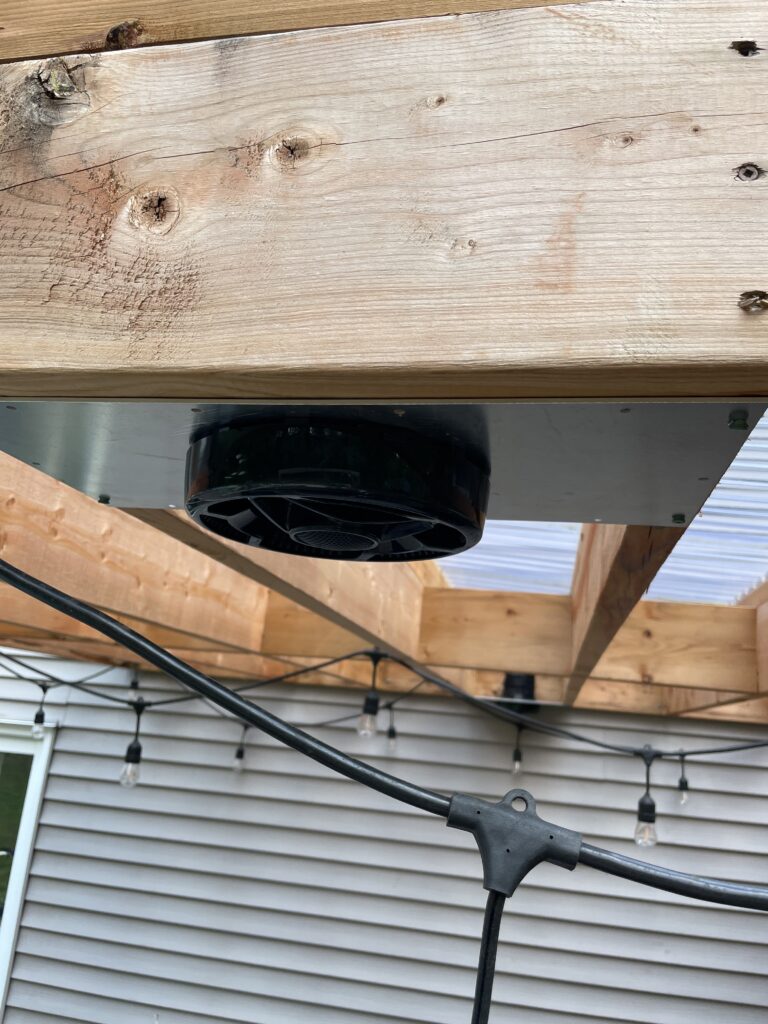

This is the other side
